Regional context

Atiu

Atiu

HS107 Totiko

Surveyed 2026-05-28

Map layers

Site assets

Daily logs

May 28, 2026

Model color relief

Colors distinguish relative surface relief in the model and are paired with hillshade. No validated elevation scale or tidal-datum tie is published here.

Site assets

Photos

Photo review

Field photographs

312 photos

Loading thumbnails...

GPS ledger

Coordinates and point heights

CSV

Each value belongs to one GPS row; it is not a single elevation for the site. The CSV distinguishes local-datum height from receiver altitude.

IDLatLonPoint heightV. accuracy
GPC7 float -19.97084083 -158.1074272 10.76 0.14425
GPC7 -19.97084058 -158.107427 10.68 0.11888
GCP1 -19.97066576 -158.1074862 9.45 0.0952
GPC5 -19.97054053 -158.1076218 9.54 0.08007
HS107G -19.97054811 -158.1077387 10.06 0.06731
GCP5 -19.97054063 -158.1076222 9.56 0.0663
HS107D -19.97068439 -158.1075976 10.14 0.06683
HS107Z -19.97070298 -158.1076379 10.05 0.06791
HS107H -19.97068096 -158.1075638 9.68 0.067
Hs107E -19.97073145 -158.1075027 9.90 0.06676
Hs107F -19.97073294 -158.1074957 9.63 0.06306
ATIU-20260528-HISEAS-024 -19.97082037 -158.1077131 10.46 0.06234
GCP4 -19.97095835 -158.1075363 10.95 0.06051
HS107A -19.97082066 -158.1073918 10.18 0.06037
HS107B -19.97077906 -158.1073697 10.09 0.05918
HS107C -19.9707256 -158.1073788 9.61 0.05841

Samples

Sample list

SampleTypeTime CKTPositionPhotos
HS107A Fossilized coral 2026-05-28 18:04 -19.970821, -158.107392
10.178 m
HS107B Fossilized coral 2026-05-28 18:06 -19.970779, -158.107370
10.090 m
HS107C Fossilized coral 2026-05-28 18:10 -19.970726, -158.107379
9.609 m
HS107D Fossilized coral 2026-05-28 17:41 -19.970684, -158.107598
10.141 m
HS107E Fossilized coral 2026-05-28 17:50 -19.970731, -158.107503
9.900 m
HS107F Fossilized coral 2026-05-28 17:54 -19.970733, -158.107496
9.633 m
HS107G Fossilized coral 2026-05-28 17:32 -19.970548, -158.107739
10.061 m
HS107H Fossilized coral 2026-05-28 17:49 -19.970681, -158.107564
9.679 m

Raster data

Download site rasters

Manifest

The map’s DEM layer is a hillshade visualization. These links provide the source elevation raster and orthophoto as GeoTIFFs for local analysis. The DEM uses the island-specific datum.

Raw DEM GeoTIFF HS107_dem.tif · 65.5 MiB EPSG:4326 · Float32 · 1 band
Download
Orthophoto GeoTIFF HS107_orthophoto_rgba.tif · 328.6 MiB EPSG:4326 · Byte · 4 bands
Download

SHA-256 checksums are included in the public manifest for reproducibility.

Topographic profiles pending

HS107 has photogrammetry map layers, but profile transects have not been defined yet.

Animated geology plate

HS107: Totiko

Atiu, Cook Islands

Surveyed 2026-05-28

HS107: Totiko

Explore Totiko’s parallel reef gullies with an elevated orbit and clay-relief view, then inspect the reef cliff.

Field notes

Based on 28 May 2026 field observations and calibrated survey photographs. The corrected camera alignment and rebuilt surface were reviewed before this tour was remade. H5 alternates photographic texture with an illustrative clay view of exactly the same surface; raking light and ambient occlusion emphasize relief without adding geological boundaries. Constructional relief, erosion, rockfall and cementation remain competing explanations for the gullies. No age or sea-level elevation is assigned. Individual coral and giant-clam observations have not all been located as precise model targets. Vegetation, moving water and incomplete coverage remain uncertain; two small uncertain bare-surface patches in the full model are outside this display crop. Grey cut walls, backing, support and reveal are artificial presentation geometry.

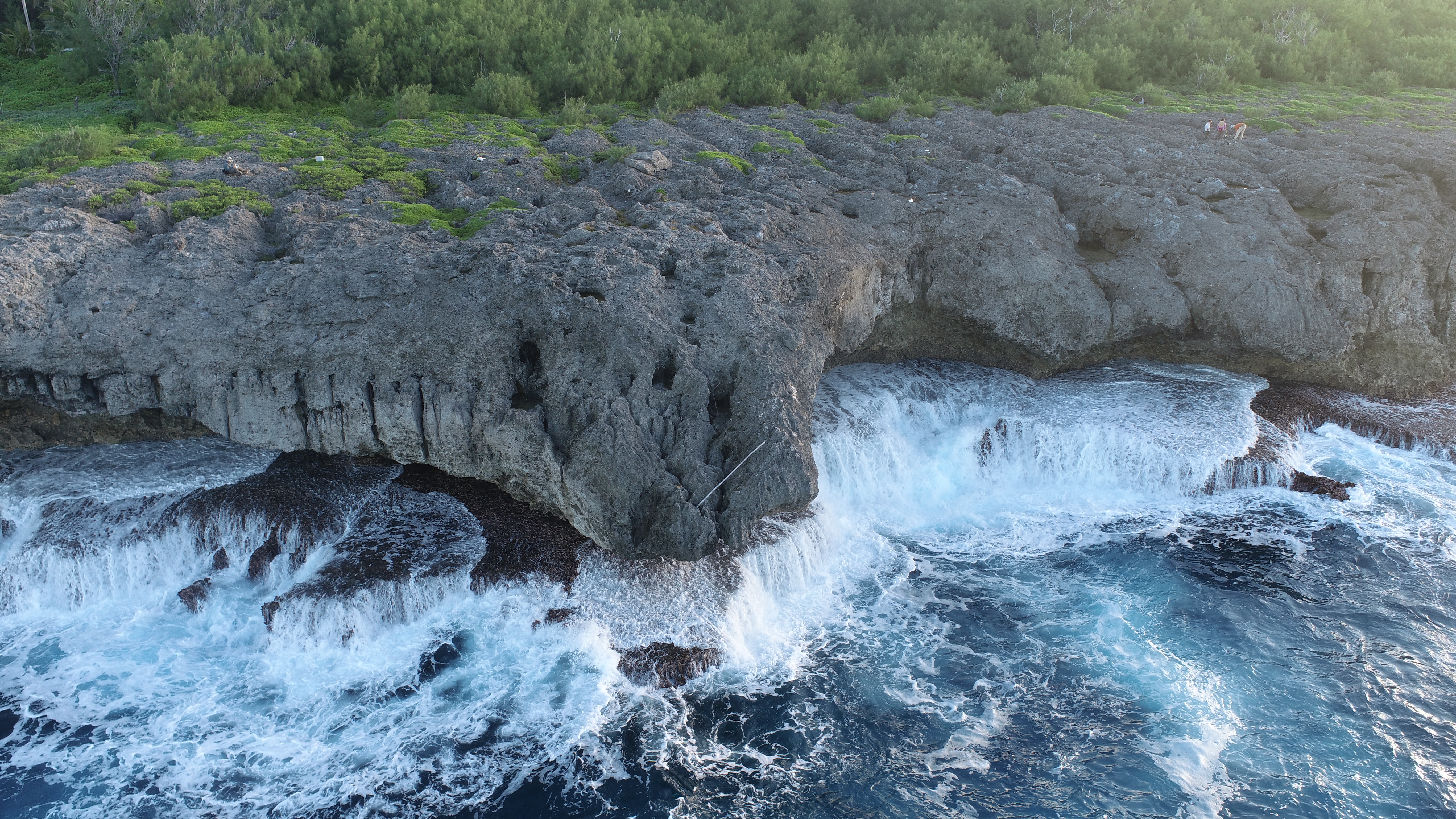

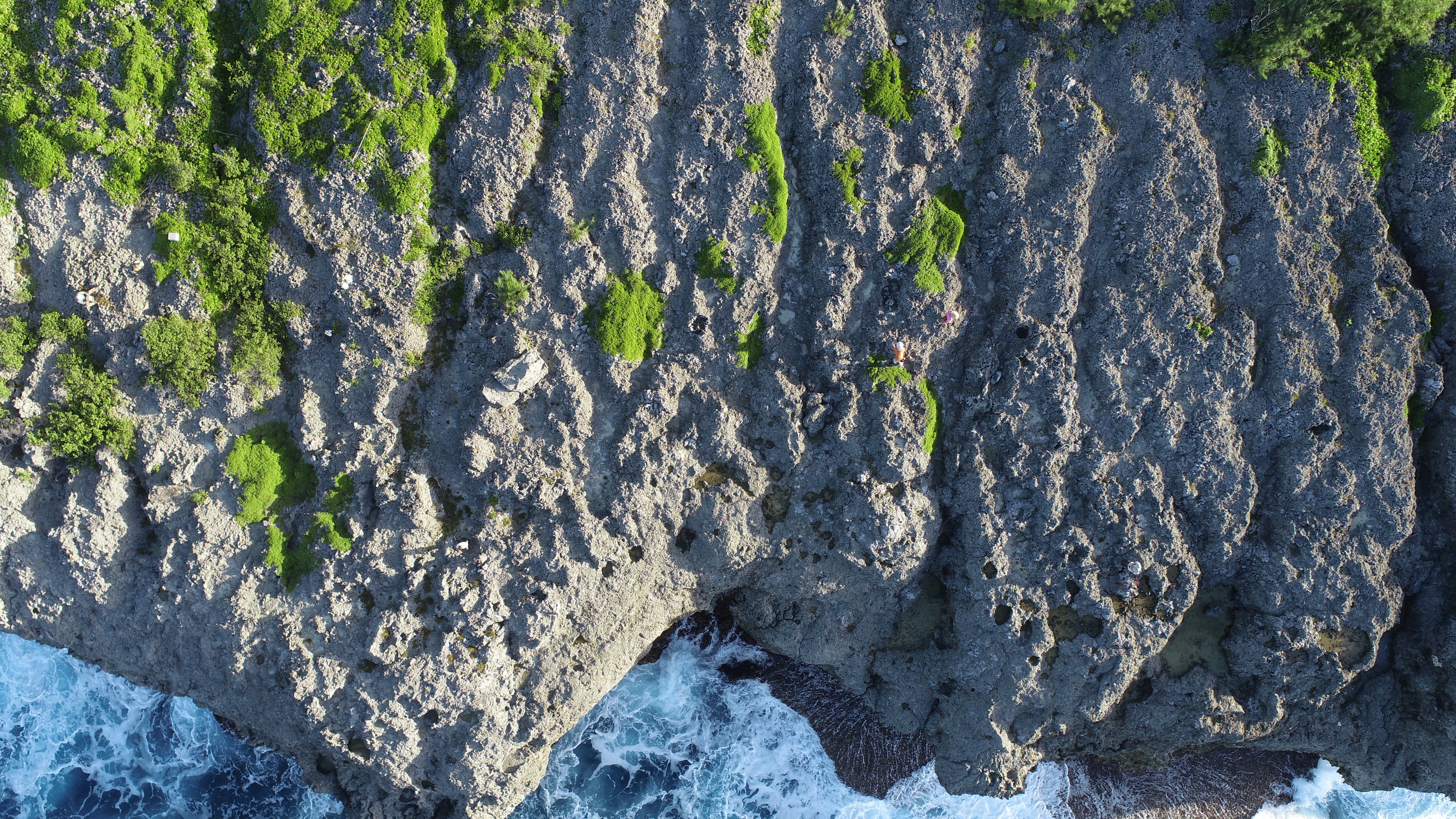

H5 · Parallel reef gullies: field photograph (opens in a new tab) CL · Reef cliff: field photograph (opens in a new tab)
Stops
00:00 / 00:30

Explore further to begin the guided tour.
